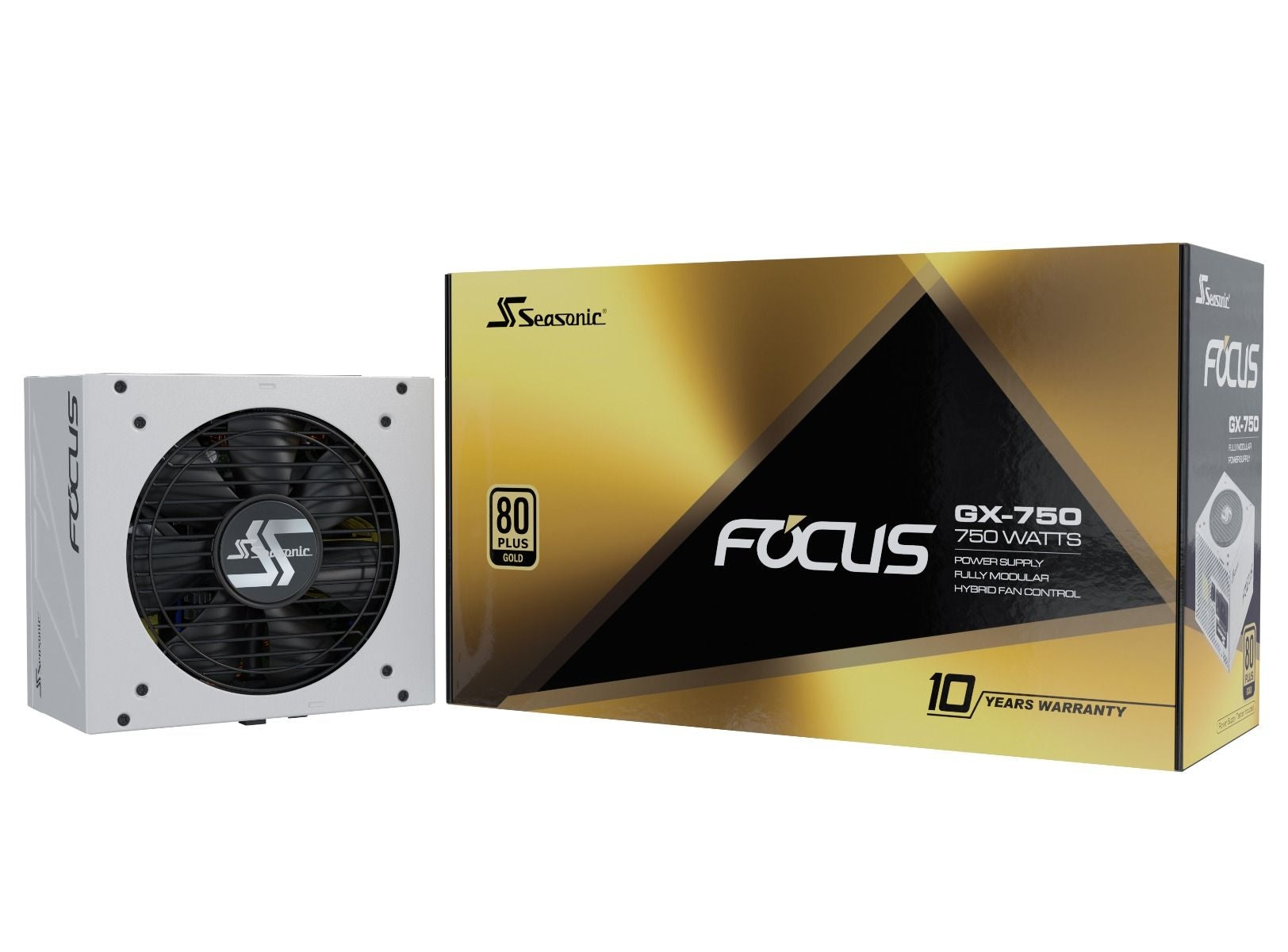

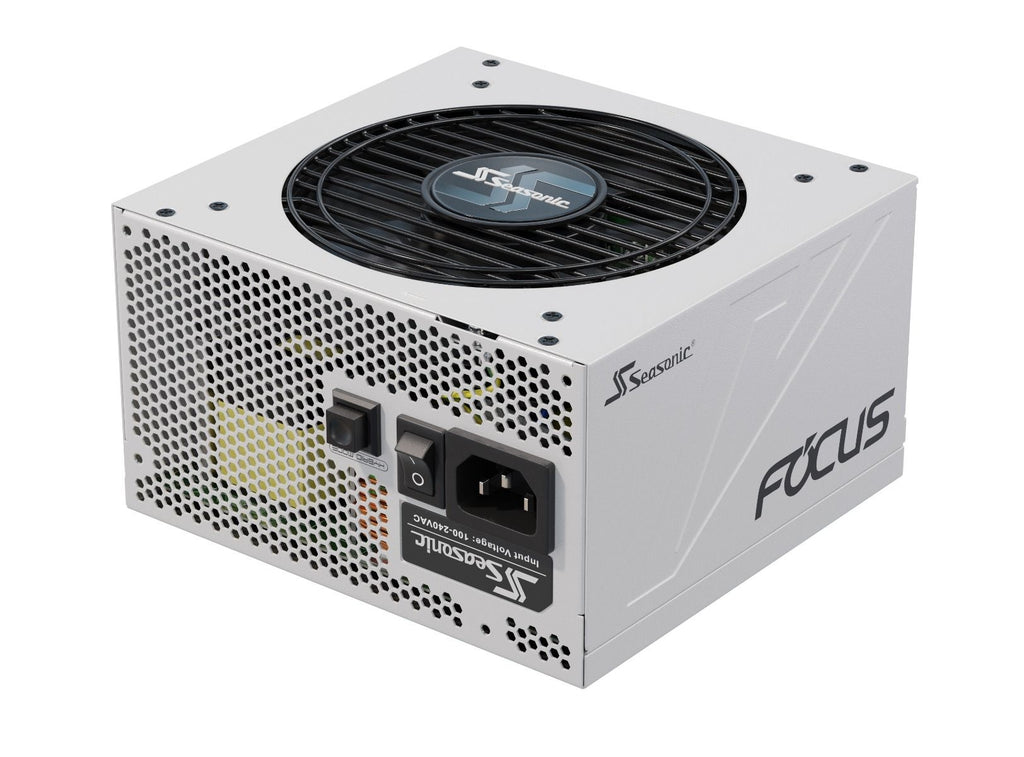

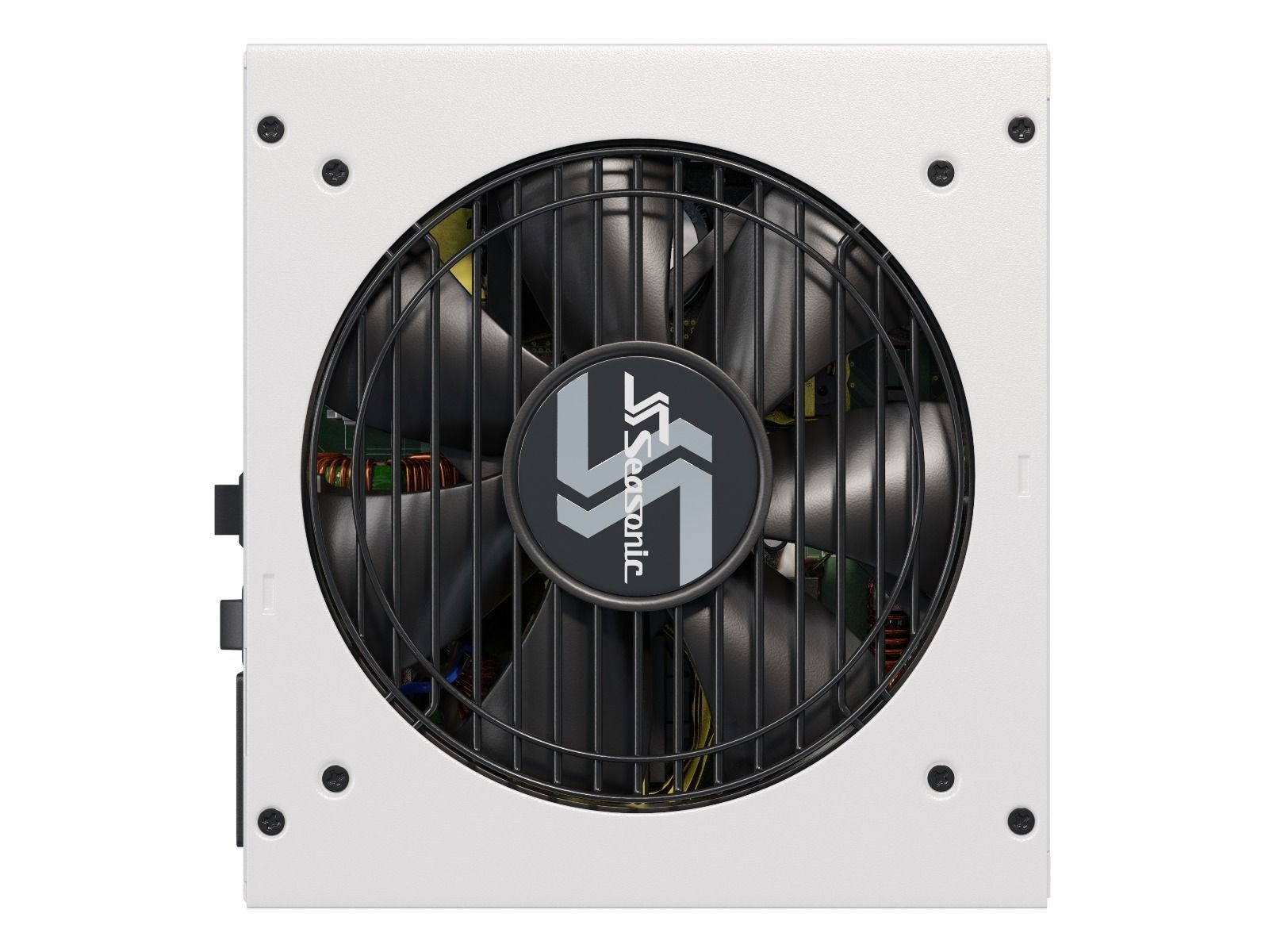

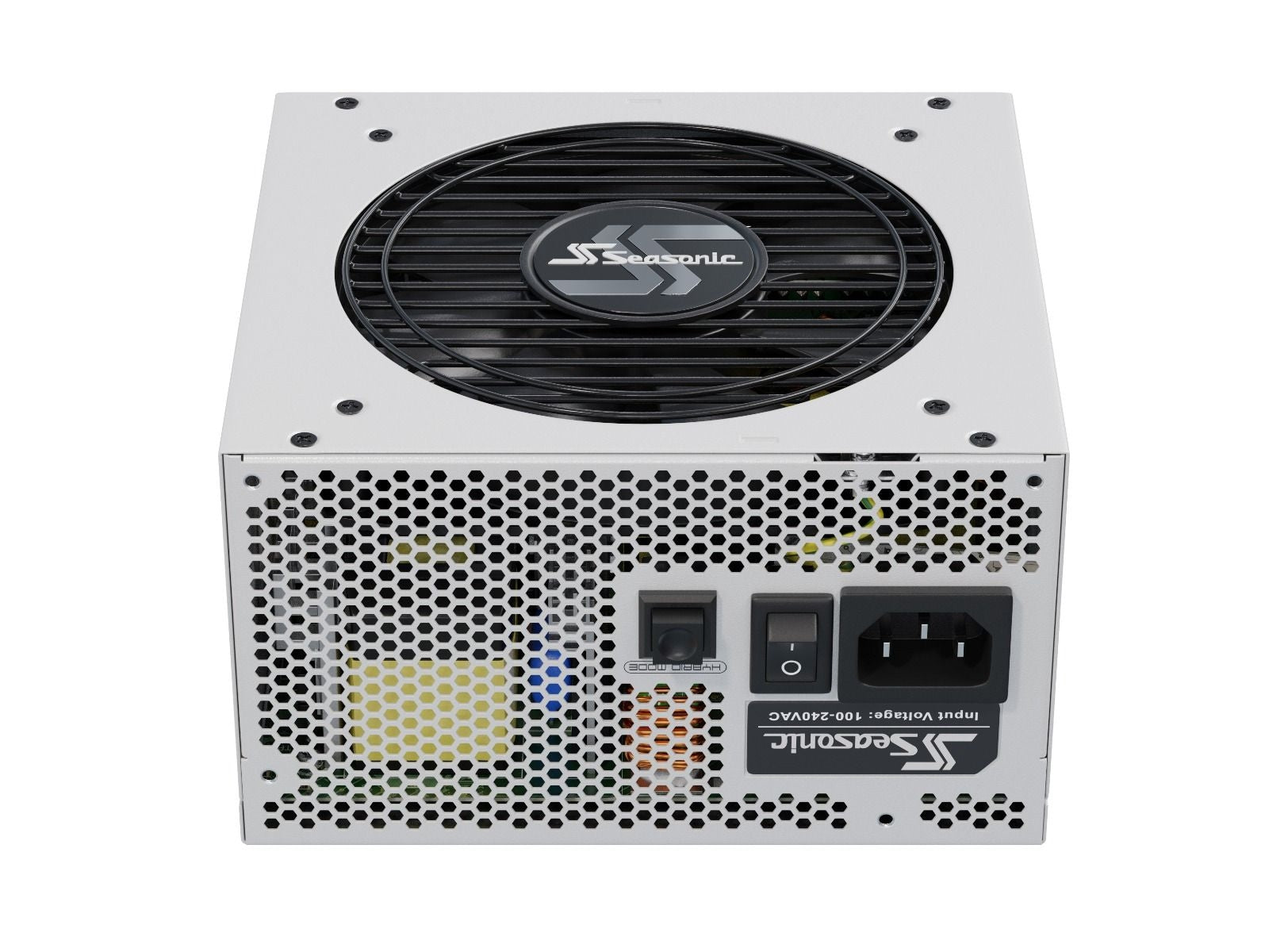

Seasonic FOCUS GX-750 White 750W ATX 3.0 Gold Modular PSU

Free shippingSave 8%

Price:
Sale price$319.95 Regular price$347.95

Delivery Timeframe

  • VIC: approximately 7–10 business days;
  • NSW, SA, ACT and QLD: approximately 9–12 business days;
  • WA, NT and TAS: approximately 9–12 business days.

Weekends and public holidays excluded. These are estimates only, not guaranteed arrival dates

Returns & product support

Please check product descriptions, measurements, sizing and compatibility before ordering. Contact us about faulty, damaged, incorrect, incomplete or materially misdescribed items.

Shipping availability, delivery costs and applicable GST are shown at checkout.

Looking for a locally supplied option? Send us the product link and your delivery postcode through website chat. We can help check dispatch origin and delivery information. Our range combines Australian suppliers with selected products sourced globally.

Estimate shipping

FEATURES
  • 80 PLUS® Gold certified
  • Compact Size - 140 mm deep
  • Tight Voltage Regulation
  • Cable-free Connection Design
  • S3FC - Fanless until 30 % load
  • Multi-GPU setup
  • Gold plated connectors

  • SPECIFICATIONS

    Technical Specifications

    80PLUS ®

    Gold

    Cybenetics Efficiency Level

    TBA

    Cybenetics Noise Level

    TBA

    Form Factor

    Intel ATX 12 V

    Dimensions

    140 mm (L) x 150 mm (W) x 86 mm (H)

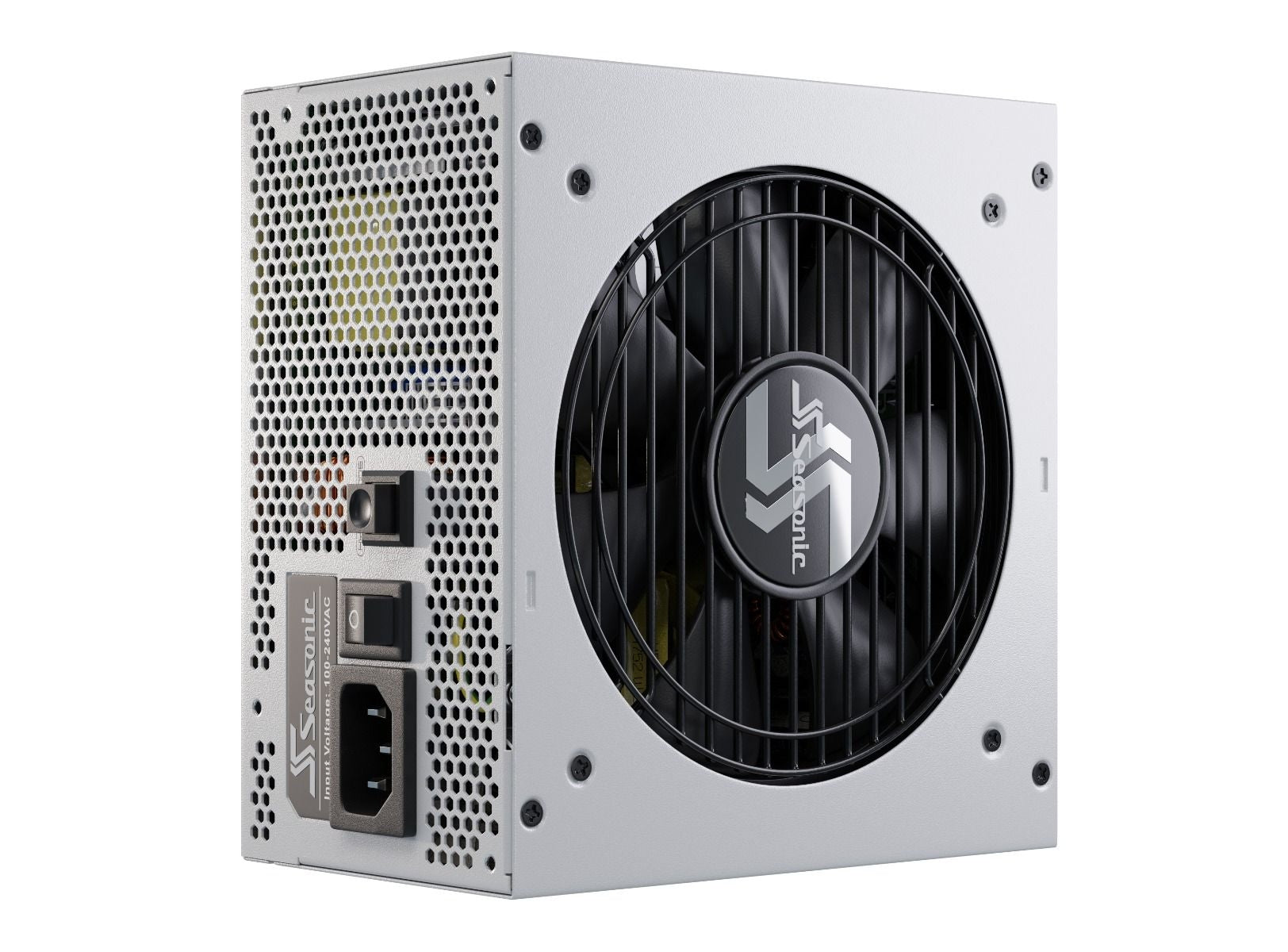

    Fan Information

    Fan Size

    120 mm

    Fan Control

    S3FC - Fanless until 30 % load

    Fan Bearing

    Fluid Dynamic Bearing

    Life Expectancy

    50,000 hours at 40 °C, 15 % - 65 % RH

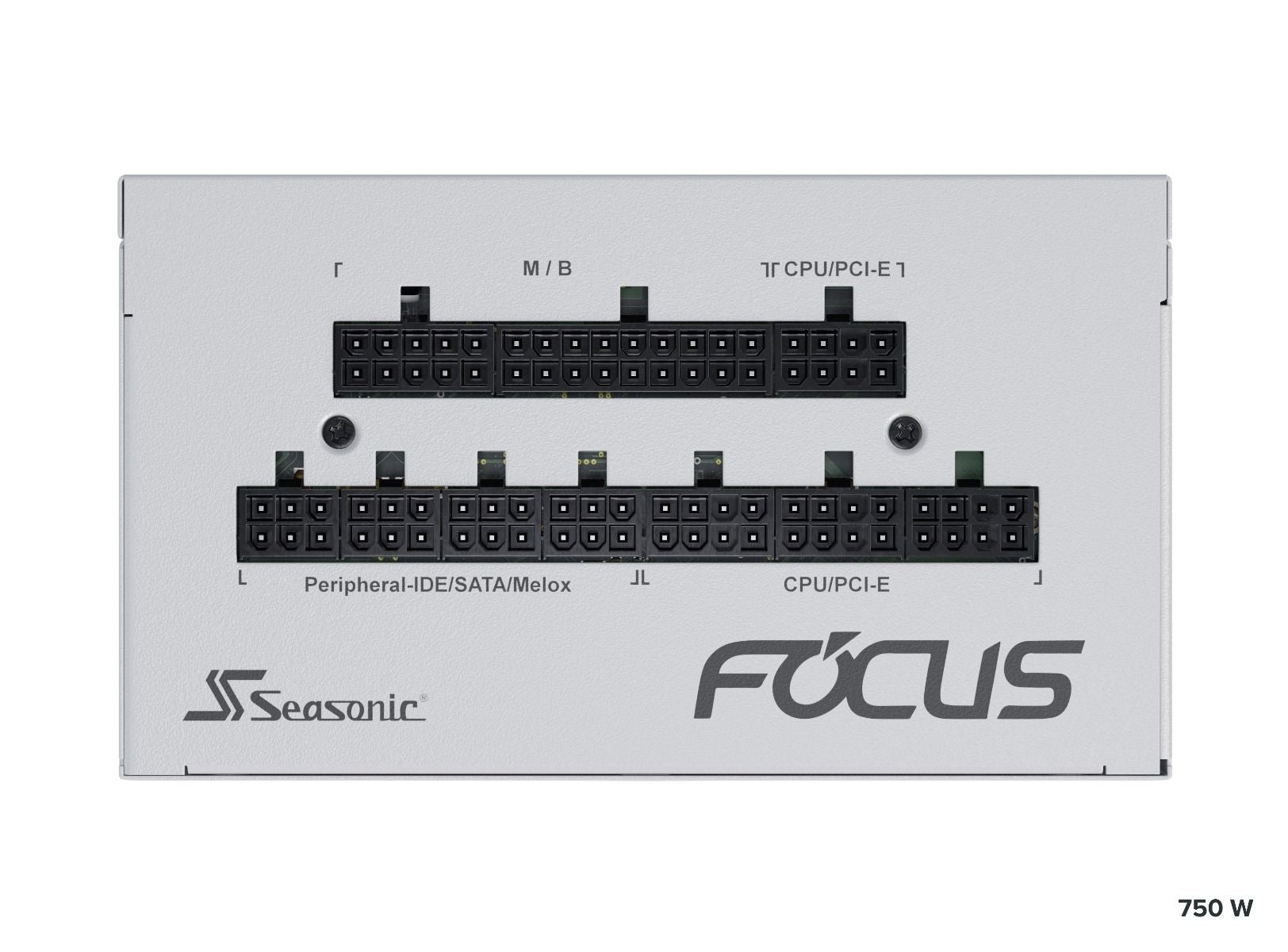

    Cable Information

    Modularity

    Fully Modular

    Cable type

    Flat cables

    Electrical Features

    Operating Temperature

    0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

    MTBF @ 25 °C, excl. fan

    100,000 hours

    AC Input

    Full Range

    Protection

    OPP, OVP, UVP, OCP, OTP, SCP

    Safety and Environmental

    Safety and EMC

    cTUVus, TUV, CB, CCC, BSMI, EAC, CE

    Environmental Compliance

    Energy Star, RoHS, WEEE, ErP Lot 6, REACH

    Warranty

    10 Years


    V28-PSUSEAFOCUSWHITE750GXA3

    Power Output

    AC Input

    Voltage: 100 V - 240 V

    Current: 10 - 5 A

    Frequency: 50 Hz - 60 Hz

    DC Output

    Rail

    +3.3 V

    +5 V

    +12 V

    -12 V

    +5 VSB

    Maximum Power

    20 A

    20 A

    62 A

    0.3 A

    3 A

    100 W

    744 W

    3.6 W

    15 W

    Total continuous power

    750 W
